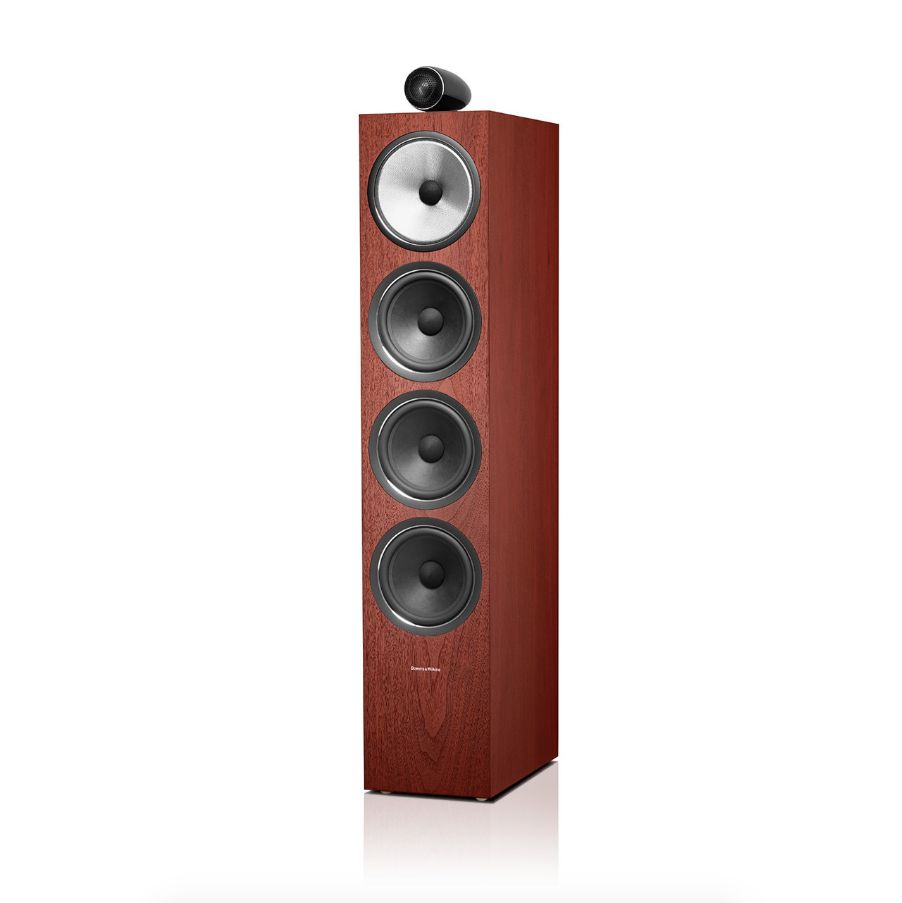

Caixa Ativa Floorstanding Speaker 702 S2 B&W

Código: 702s2 Marca: B&W

Selecione a opção de Cor:

Para mais informações entre em contato conosco através do telefone (16) 99134-8701 ou através do Fale Conosco

A house for high frequencies

Milled from a solid block of aluminum, the solid body tweeter housing design creates an acoustically optimised housing for the tweeter – one that’s exceptionally inert and resistant to resonances.

700 s2 series diamond speakers continuum cone

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound

Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum™ cone midrange driver.

702 s2 700 series 2 technology decoupled midrange updated

Clean and clear

The midrange drivers in these floorstanders feature decoupled design, adapted from a similar system in the 800 Series Diamond. Decoupling reduces cabinet coloration, and boosts midrange clarity.

A triumph of science

Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Technical specifications

Model
702 S2

Description
3-way vented-box system

Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™

Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass

Frequency range
-6dB at 28Hz and 33kHz

Frequency response
46Hz - 28kHz ±3dB

Sensitivity
90dB spl (2.83Vrms, 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz

Nominal impedance
8Ω (minimum 3.1Ω)

Recommended amplifier power
30W - 300W into 8Ω on unclipped programme

Dimensions
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth

Net weight
29.5kg (65 lb)

Cabinet finishes
Gloss Black
Satin White
Rosenut

Grille finishes
Black
Grey (Satin White only)
