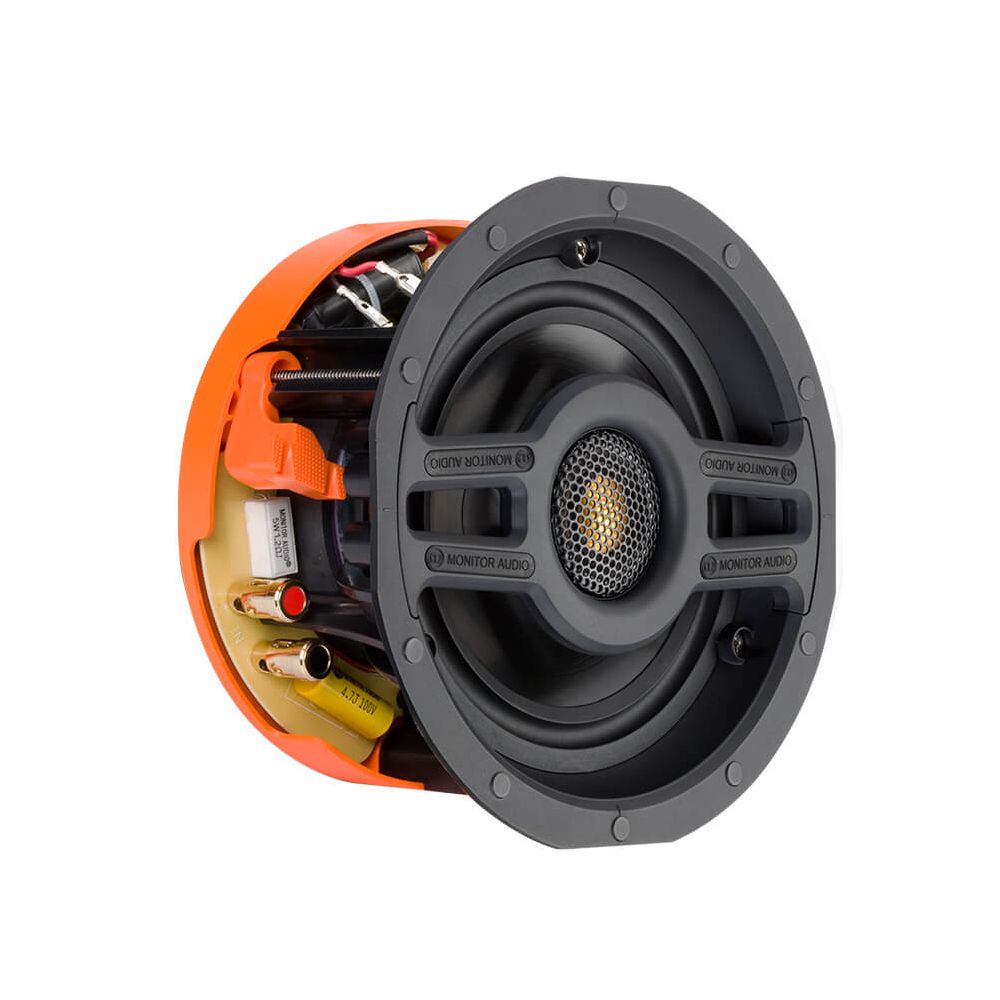

Caixa Acústica Embutir Monitor Audio SCS140R Branca Redonda

Código: 1196 Marca: MONITOR AUDIO

Para mais informações entre em contato conosco através do telefone (16) 99134-8701 ou através do Fale Conosco

Frequency Response

75 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

85 dB

Maximum SPL

102.8 dBA

Power Handling (RMS)

50 W

Recommended Amplifier Requirements

10 – 50 W

Drive Unit Complement

1 x 4" MMP II cone bass driver.
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration

2-way

Overall Dimensions (Including Grille (H x W))

Round: 180.2 mm (71/8")
Square: 176.7 x 176.7 mm (615/16 x 615/16")

Mounting Depth

99 mm (37/8")

Cut-Out Hole Diameter

149 mm (57/8")

Fixing Type

3 position Tri-Grip dog fixings

Connection

Gold plated ‘push’ type terminals

Grille Attachment

Magnetic

Construction Material

Mineral filled ABS, RoHS compliant

Weight

1.18 kg (2 lb 10 oz)

Pre-Construction Bracket

CB4 Pre-Construction Bracket (Pink)

Back Box

CCBOX-R
